PRODUCT IDENTITY
CATEGORY
Machinery protection
FUNCTION
Proximity monitoring
BENTLY NEVADA MACHINERY PROTECTION

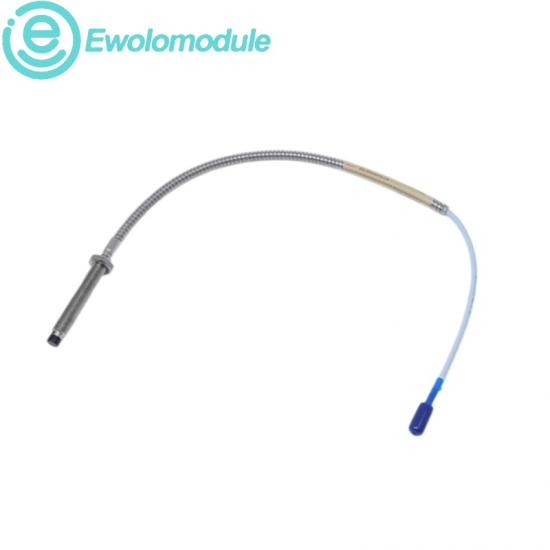

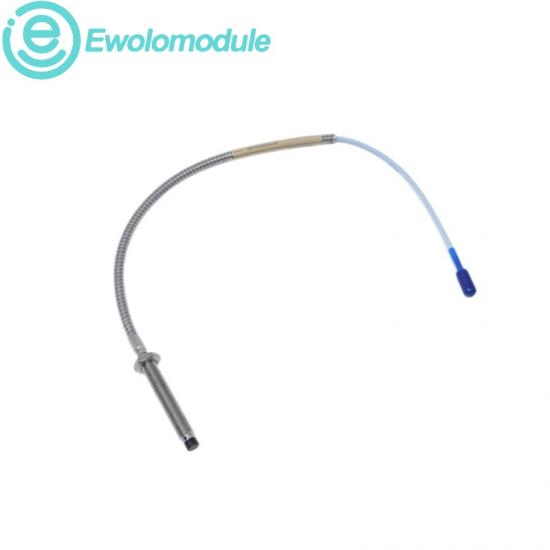

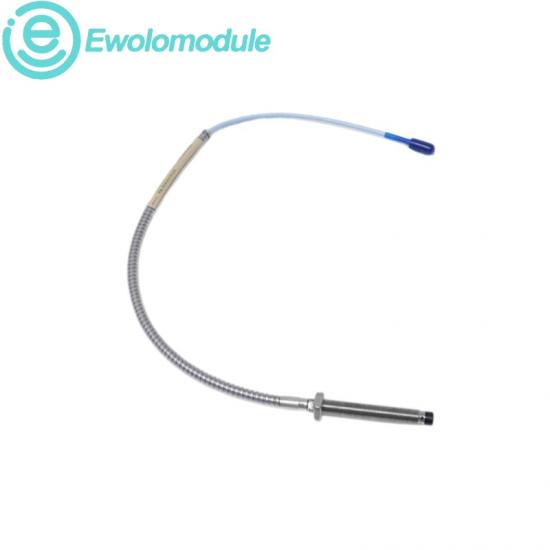

Bently Nevada 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probe
A Bently Nevada 3300 XL proximity probe for non-contact machinery condition monitoring and controlled replacement in compatible installed systems.
AVAILABILITY
Limited stock
RELATED BENTLY NEVADA MODELS
Performance & Efficiency
Non-contact measurement
Eddy-current sensing supports continuous shaft vibration and position measurement without mechanical contact.
Stable linear response
A nominal 2mm linear range and 7.87V/mm sensitivity support consistent machinery-protection measurements.
Harsh-area construction
Armored probe construction and a wide operating-temperature range support demanding industrial installations.
Official technical data
Product type3300 XL 8 mm proximity probe
Order number330104-00-07-05-02-00
ThreadM10x1
Probe case length70mm
Total length0.5m
CableStandard miniature coaxial
ConnectorMiniature coaxial ClickLoc
Output range-18 to +18V
DC resistance7.45Ω ±0.50Ω
Supply-23 to -25VDC
Linear range2mm
Operating temperature-52 to +177°C
Configuration & Programming
Complete-code selectionMatch every order-code segment, including case length, total length, connector and cable options.
Gap configurationSet the initial probe gap with the installed Proximitor and target material before returning the machine to service.
System-length matchingUse the correct extension cable and Proximitor combination for the specified transducer-system length.
Channel setupApply the approved monitor scale, alarm values and documentation for the connected vibration or position channel.
Brand characteristics
Bently Nevada proximity systems use matched probes, extension cables and Proximitor sensors to deliver repeatable non-contact machinery measurements.
Matched system designDefined probe, cable and Proximitor combinations support predictable measurement performance.
Installed-base continuityDocumented 3300 XL options simplify controlled replacement in existing monitoring systems.
Service identificationComplete order codes help maintenance teams verify mechanical and electrical fit before installation.
Application fields
The 330104-00-07-05-02-00 probe supports non-contact vibration and position monitoring on rotating machinery with suitable 3300 XL system components.
TurbomachineryShaft vibration and radial position measurement on turbines, compressors and expanders.
Motor and pump trainsCondition-monitoring channels for critical motors, pumps and coupled equipment.
MRO replacementsOrder-code-matched replacement during planned outages and instrumentation maintenance.
Recommended models
Bently Nevada
330101-00-08-10-02-00
330102-00-10-10-02-00
330103-00-03-05-02-05
330103-00-06-15-02-05
330104-00-10-50-02-00
330106-05-30-10-02-00
330130-040-00-00
330130-070-00-00
330180-51-00
330180-X1-00
330190-040-00-00
330500-00-00
330525-00
330730-040-00-00
330730-080-01-00
3500/22M
3500/42M
3500/50M
3500/64M
3500/94M
Emerson EPRO
PR6422/010-010
PR6423/002-000
PR6423/002-001
PR6423/004-120
PR6423/010-100
PR6423/013-130
PR6423/014-010
PR6423/100-141
PR6423/103-141
PR6423/105-141
PR6423/106-0F1
PR6424/000-030
PR6424/004-120
PR6424/104-141
PR6425/010-010
PR6426/000-121
CON021
CON031
CON041
MMS6823
01 · IDENTIFY
Provide the complete 330104-00-07-05-02-00 order code, required quantity and installed system details.
02 · VERIFY
Confirm thread, case length, total cable length, connector, armor and matching Proximitor before replacement.
03 · QUOTE
Review price, lead time, warranty and delivery terms for the requested quantity.
04 · DISPATCH
Complete order checks, protective packing and destination-based worldwide shipment.
Warranty support
One-year warranty applies according to confirmed product condition and order terms.
Protected logistics
Available units are checked and packed for destination-based international transport.
