Bently Nevada · 3500

Product Model

3500/93 135785-02

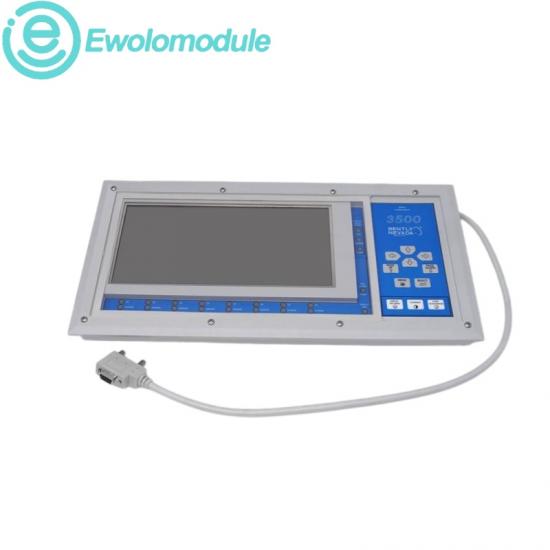

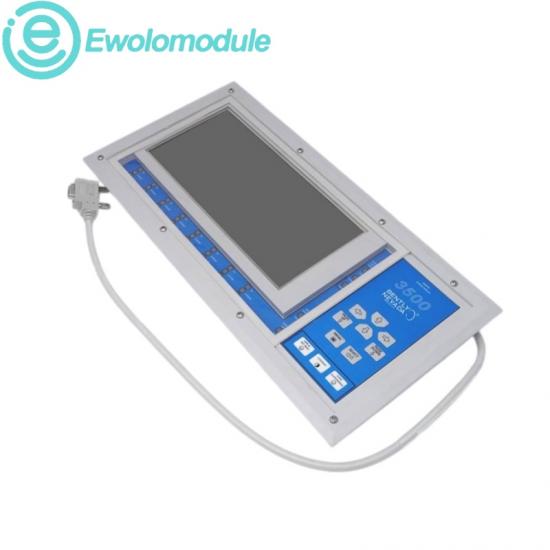

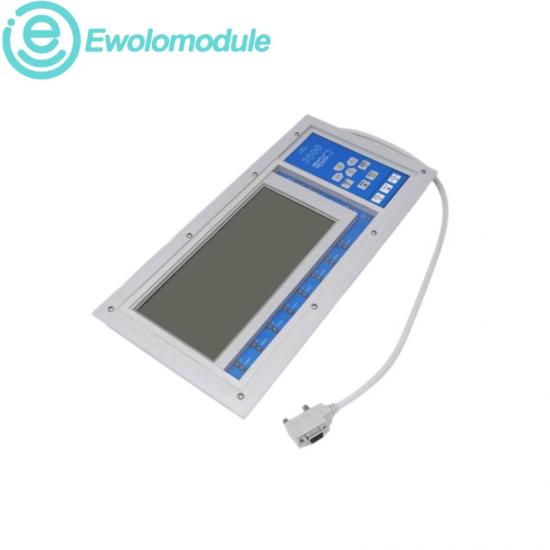

Bently Nevada 3500/93 135785-02 Backlit System Display

Bently Nevada 3500/93 backlit system display assembly for viewing machinery protection data from a compatible 3500 rack.

AVAILABILITYIn Stock · 2 units

WARRANTYOne year

Request Price & Availability

PRODUCT OVERVIEW

Bently Nevada 3500/93 backlit system display assembly for viewing machinery protection data from a compatible 3500 rack.

MODEL IDENTIFICATION

Confirm both 3500/93 and part number 135785-02. The -02 execution is the backlit display unit and must be checked against the installed interface and power arrangement.

COMPATIBILITY CHECK

Confirm the 3500 rack display interface, cable, mounting style, external backlight power and system configuration before replacement.

INSTALLATION AND REPLACEMENT

Isolate the approved display supply, protect the display surface and connectors, and verify communication and display update after installation.

PURCHASE CHECK

Confirm the exact model, quantity, condition, included accessories, inspection scope, one-year warranty, lead time and delivery terms in the written quotation.

TYPICAL APPLICATIONS

Rack display

Machine protection

Operator indication

Alarm viewing

Plant maintenance

BUYER QUESTIONS AND ANSWERS

What does 135785-02 identify?

It identifies the backlit 3500/93 display unit. Confirm the complete part number on the installed label.

Does the backlight need separate power?

Yes. The backlit execution requires the documented external supply and wiring arrangement.

Is the display configured independently?

Rack interface, display cable and system configuration must be checked together before replacement.

How is shipping damage prevented?

The display face and connectors are protected with antistatic, moisture and shock packaging, with the method stated in the quotation.

TECHNICAL SPECIFICATIONS

Manufacturer

Bently Nevada

Part Number / MPN

3500/93 135785-02

Series

3500

Product Type

Backlit System Display

Display

640x200 transflective LCD

Interface

RS422 communication

Update Rate

Less than 1 second

Backlight

External power required for backlit execution

System Use

Compatible 3500 machinery protection rack

Configuration

Verify display interface and rack setup

Condition

New Original

Warranty

One year

Dimensions

41.1x20.3x3.3cm

Weight

1.88kg

Shipping Origin

32D Guomao Building , No.388 , Hubin south Road , Siming district , Xiamen , Fujian,China

ORDERING NOTE: Verify the complete nameplate, revision, connector or terminal arrangement and installed-system compatibility before ordering. Weight and dimensions are supplied in the required shipping-data format.

PURCHASING DECISION

SYSTEM FIT

For documented 3500 installations after exact model and compatibility review.

COMMON USE

Rack display, Machine protection, Operator indication.

PACKAGE

The quotation states the backlit system display and any included accessories.

CONFIRM BEFORE ORDER

Model suffix, revision, connectors, configuration, quantity and destination.

LIFECYCLE

Legacy or lifecycle status must be checked for the exact execution before substitution.
